| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Mode | KUBOTA(V2607) |
| Power /Rotation speed | 42.4kw(58HP)@2000rpm/36.2kw |
| Type | |
| Number of cylinder | 4 |
| Max.torque | |
| Displacement | |
| TRACK SYSTEM | |
| Maximum Travel speed | 2.5/4.5km/h |
| Maximum Travel speed(High/low) | |
| Width of (Steel)track shoe | 450mm |
| Number of track shoe per side | 39pcs |
| Number of upper roller per side (Carrier roller) | 1 |
| Number of bottom roller per side (Supporting roller) | 5 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.28m³ |
| Swing speed | 11rpm |
| Maximum Grade ability | 35° |
| Maximum Bucket digging force | 56KN |
| Maximum Arm digging force | 38KN |
| Hydraulic system pressure | 27Mpa |
| Ground pressure | |
| Machine weight | 7500kg |
| Machine weight(with canopy) | |
| Machine weight(with closed cabin) | |
| Fuel tank capacity | 120L |
| Hydraulic oil tank capacity | 100L |
| Boom length | |
| Arm length | |
| Engine oil capacity | |
| Radiator capacity | |
| Final drive | |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 6054mm*2216mm*2672mm |

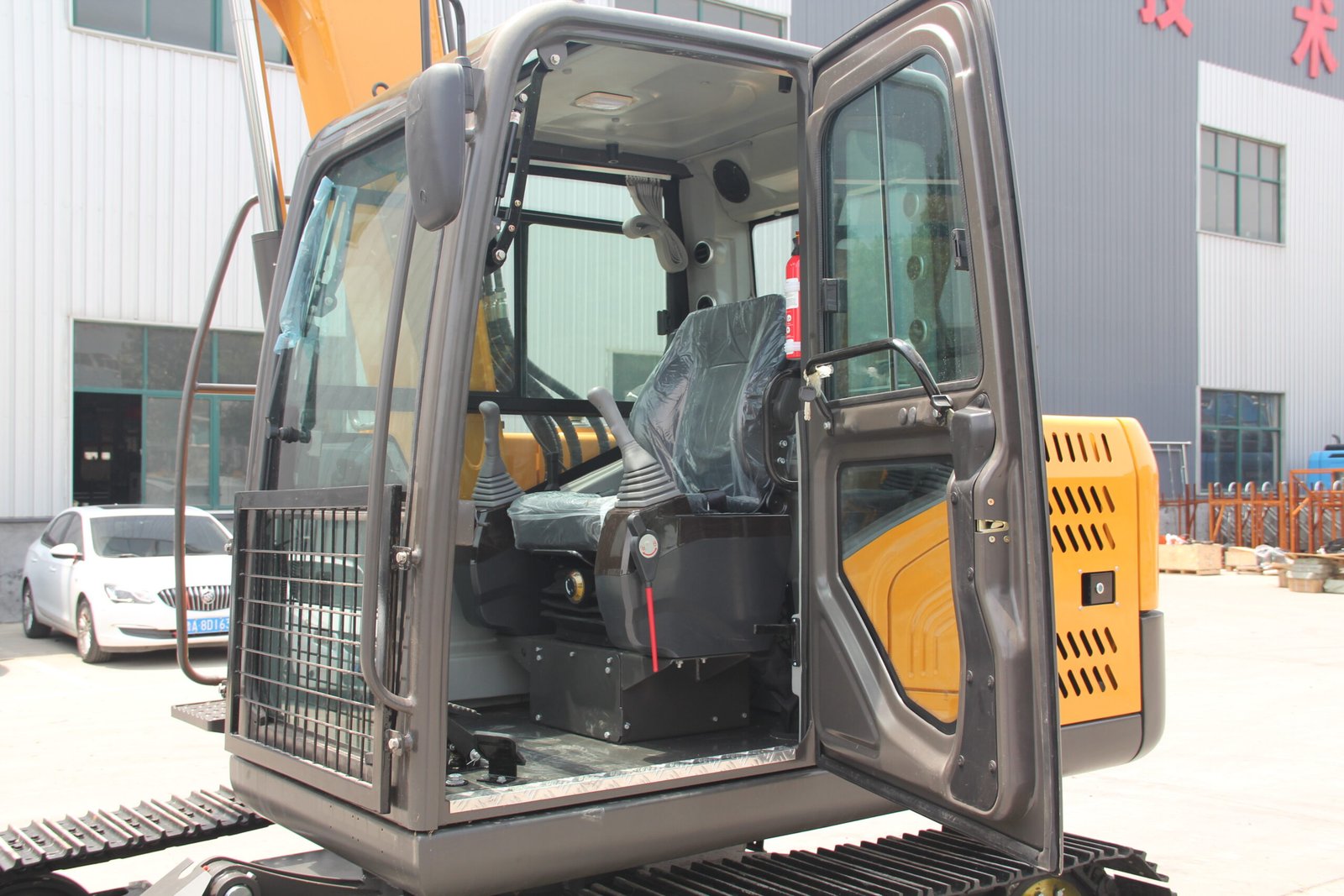

| Height of cabin | 2672mm |
| Track length on ground(Axle base) | 2209mm |
| Track gauge | 1745mm |
| Minimum Ground clearance | 375mm |
| Swing radius at tail | 1730mm |
| Length of rubber track | / |
| Swing radius at front | / |
| Height of blade | / |
| WORKING RANGE | |
| Maximum Digging height | 7023mm |
| Maximum Dumping height | 5195mm |
| Maximum Digging depth | 3898mm |
| Maximum Vertical digging depth | 2968mm |
| Maximum Digging radius | 6182mm |
| Minimum swing radius | 1740mm |
| Maximum Digging distance (on ground) | |
| Maximum Lifting height of blade | 382mm |
| Maximum Cutting depth of blade | 332mm |
| Boom swing angle(Left/Right) | |
| Max.height when min.swing radius |

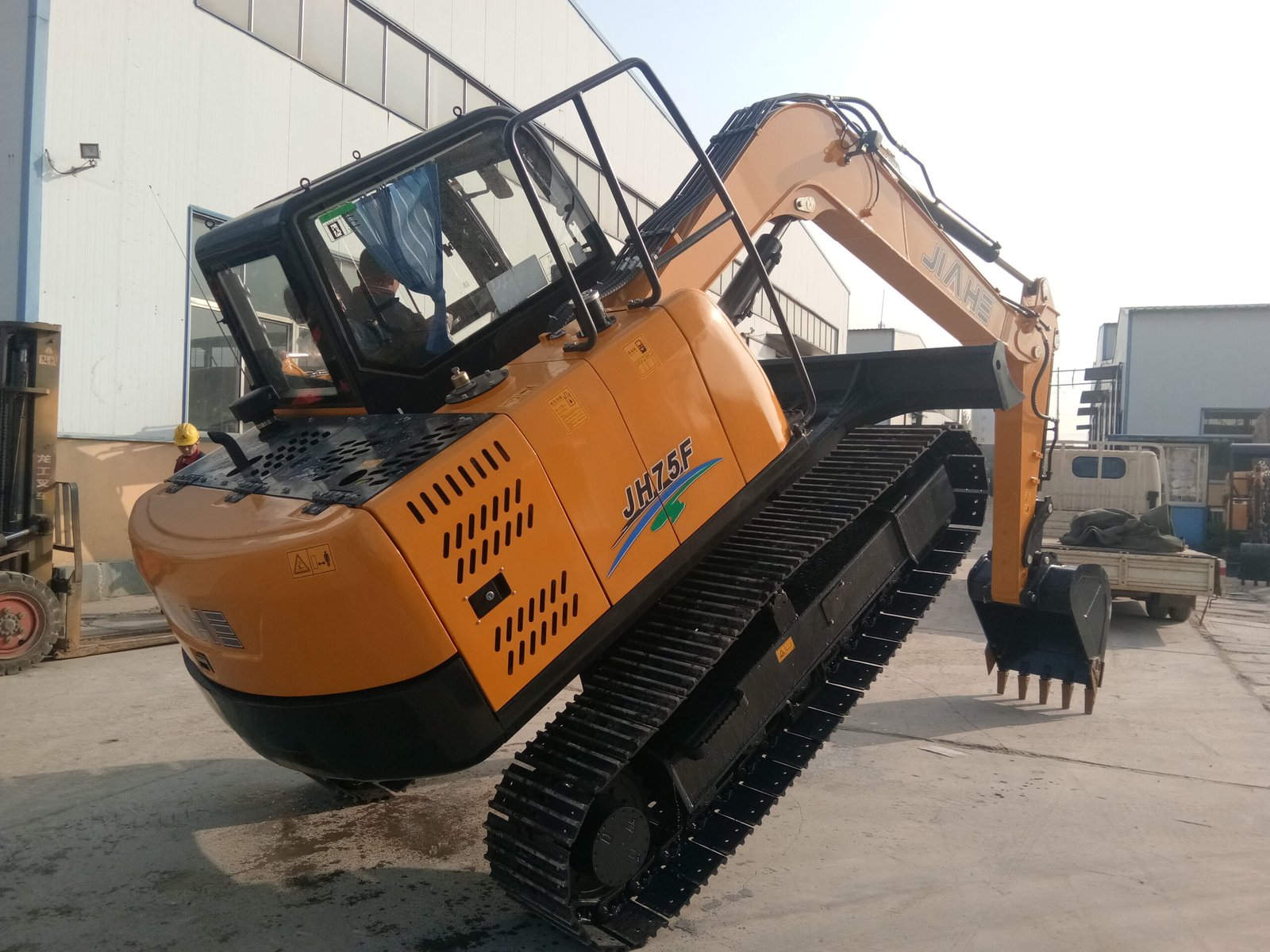

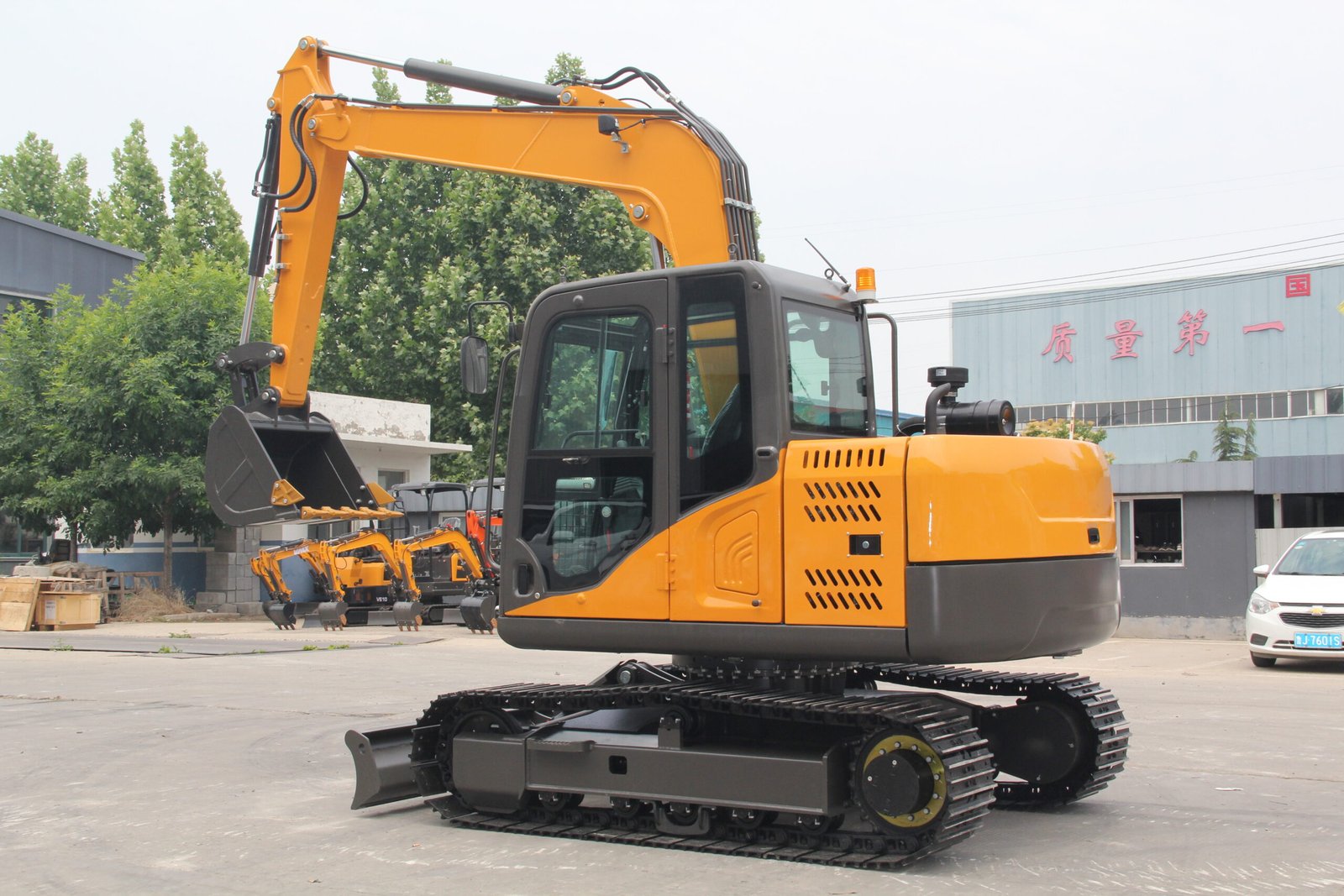

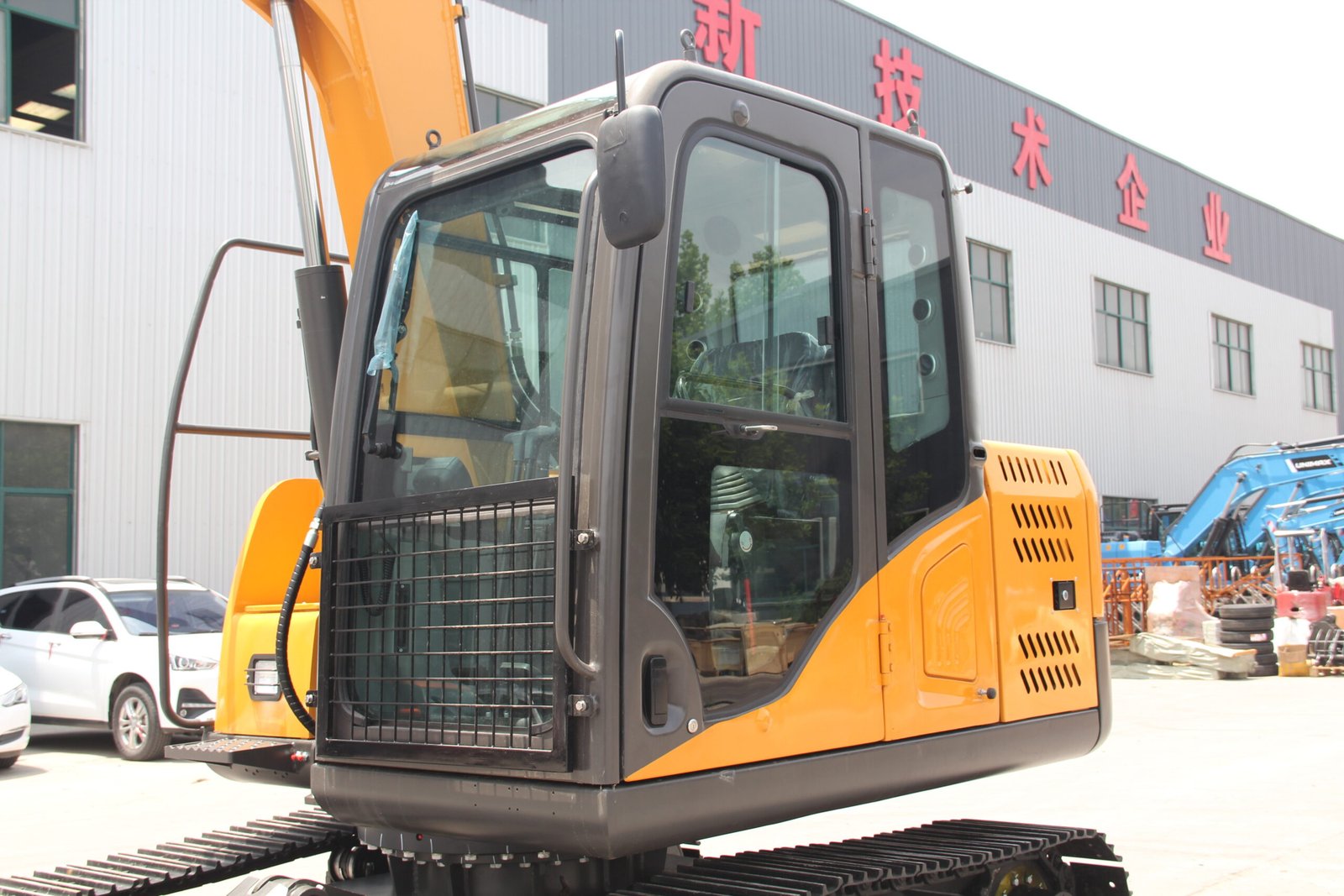

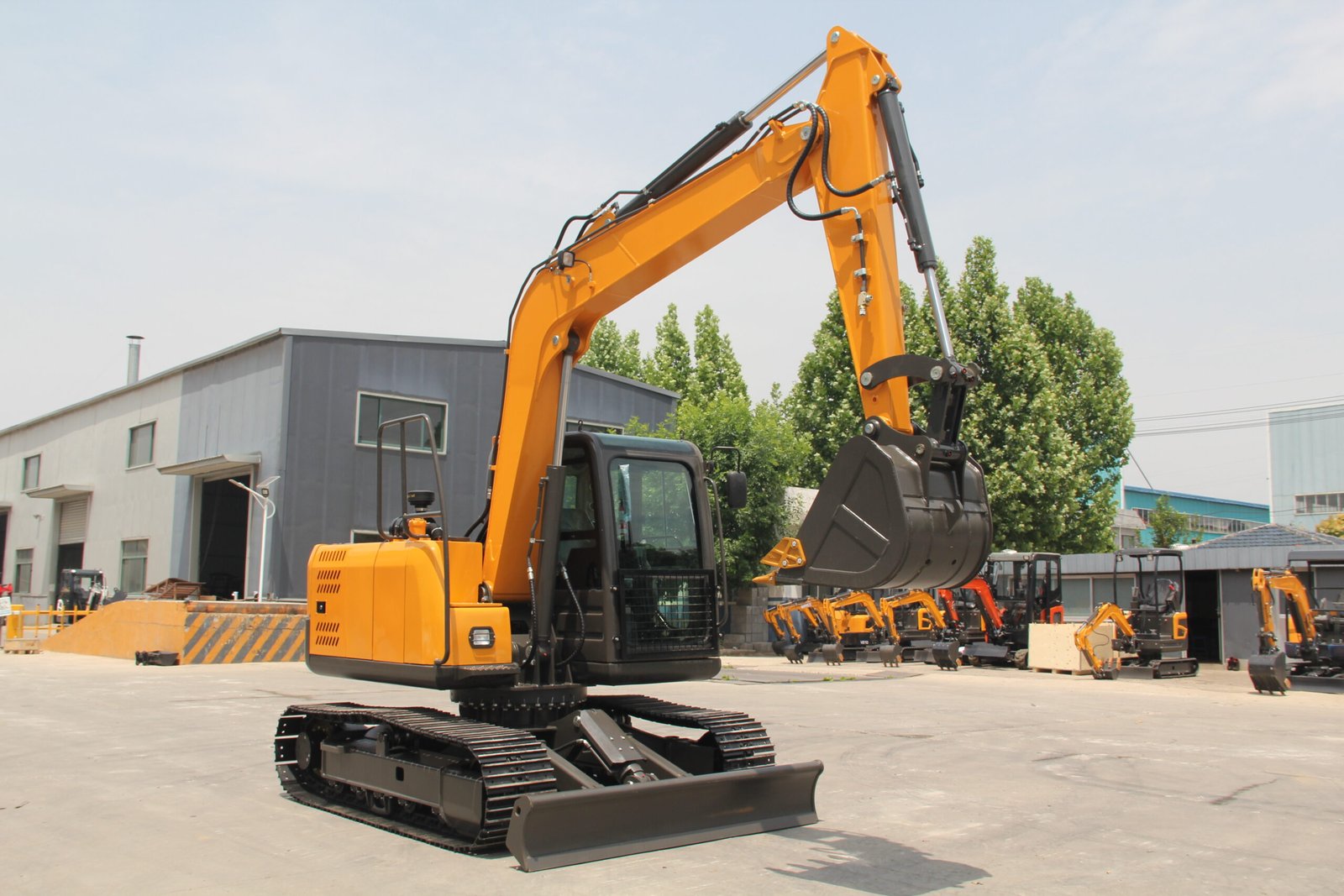

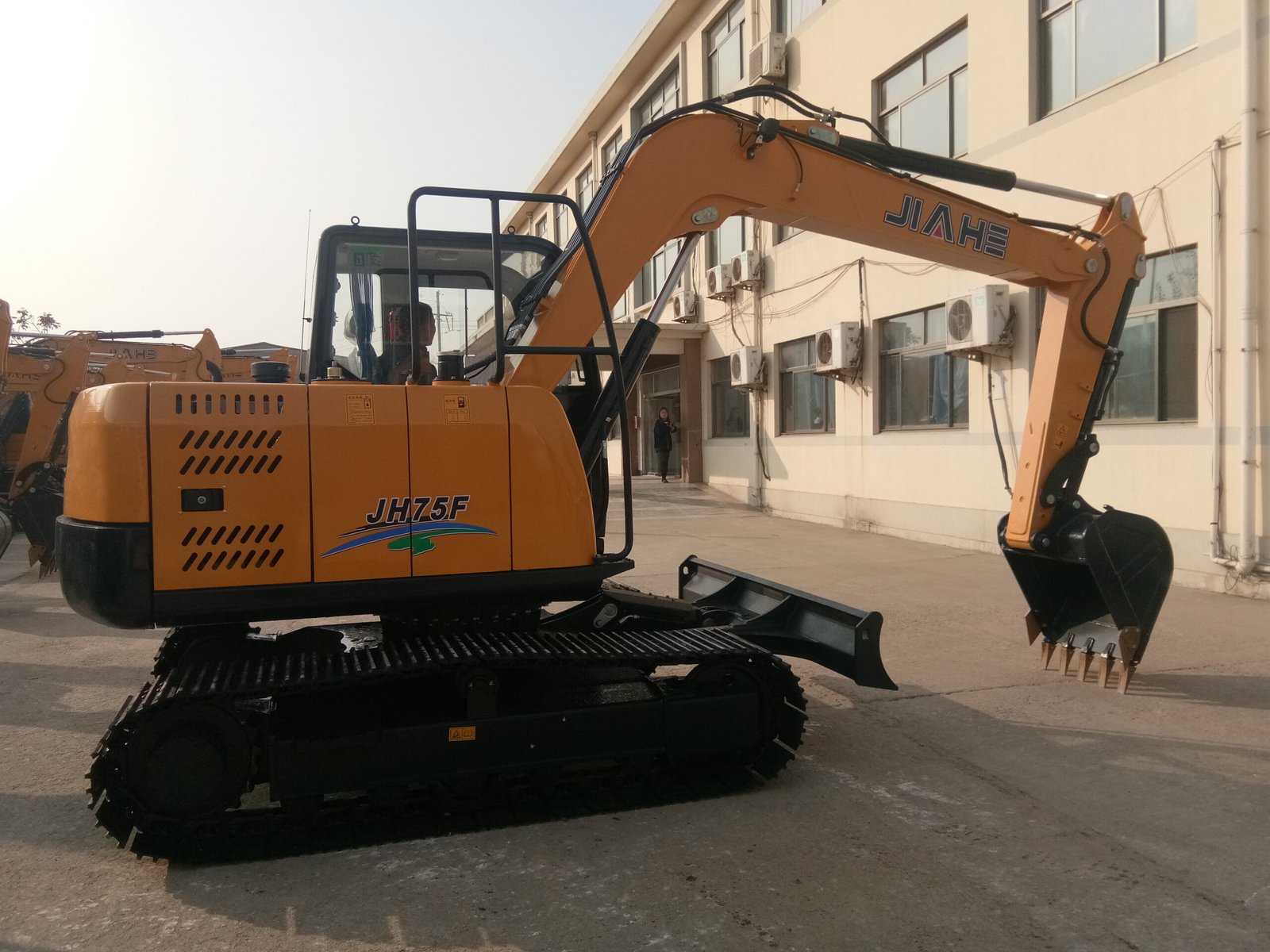

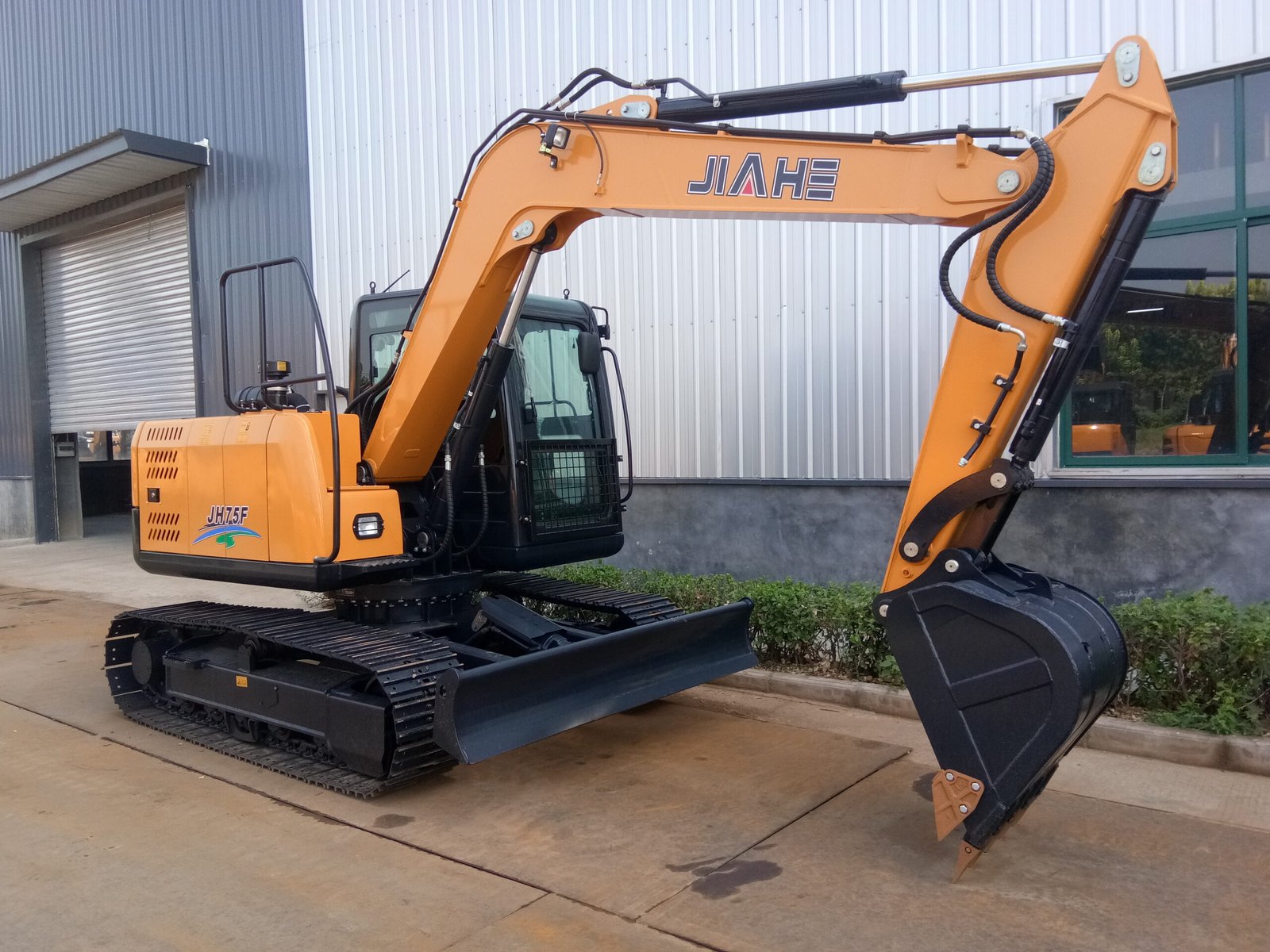

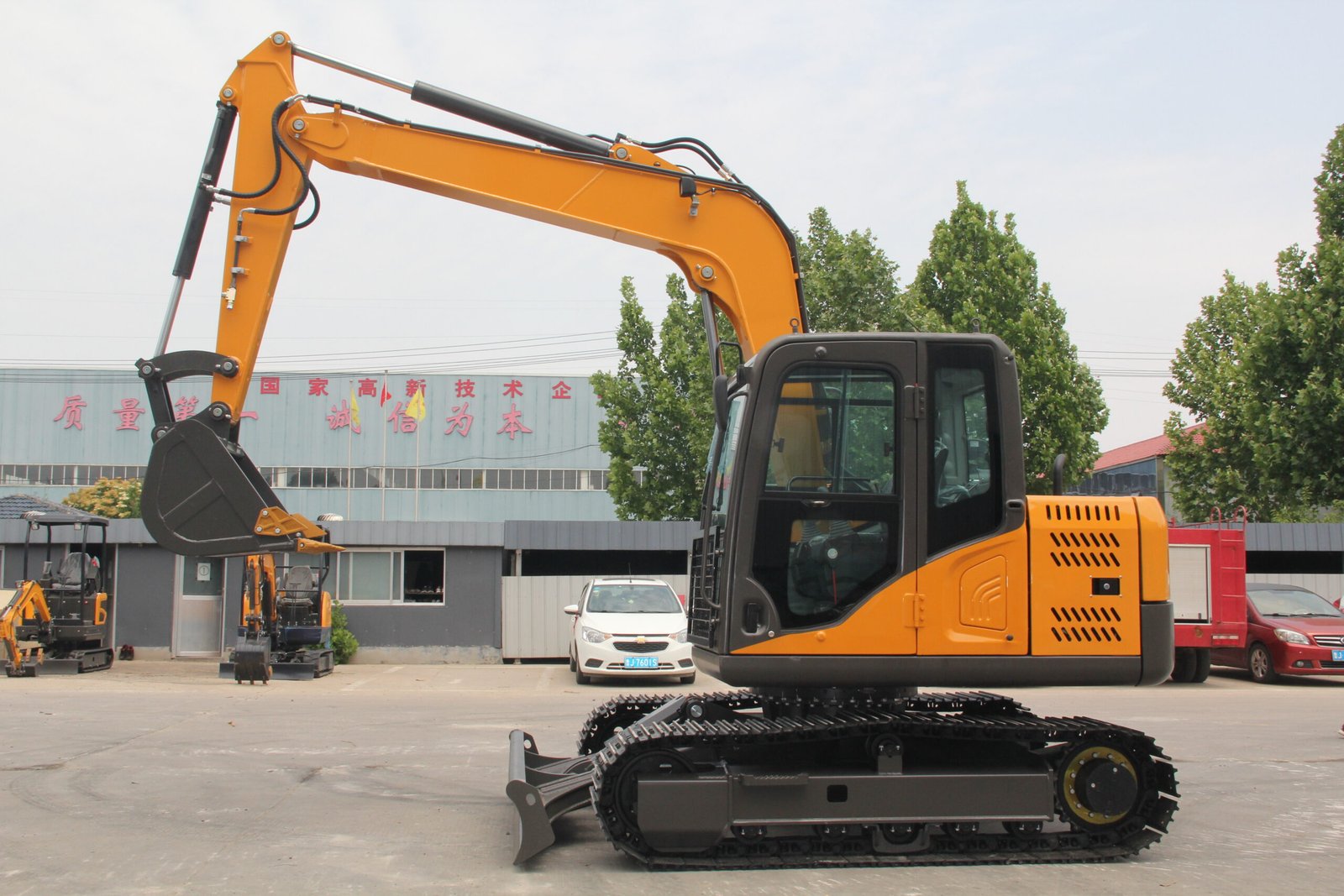

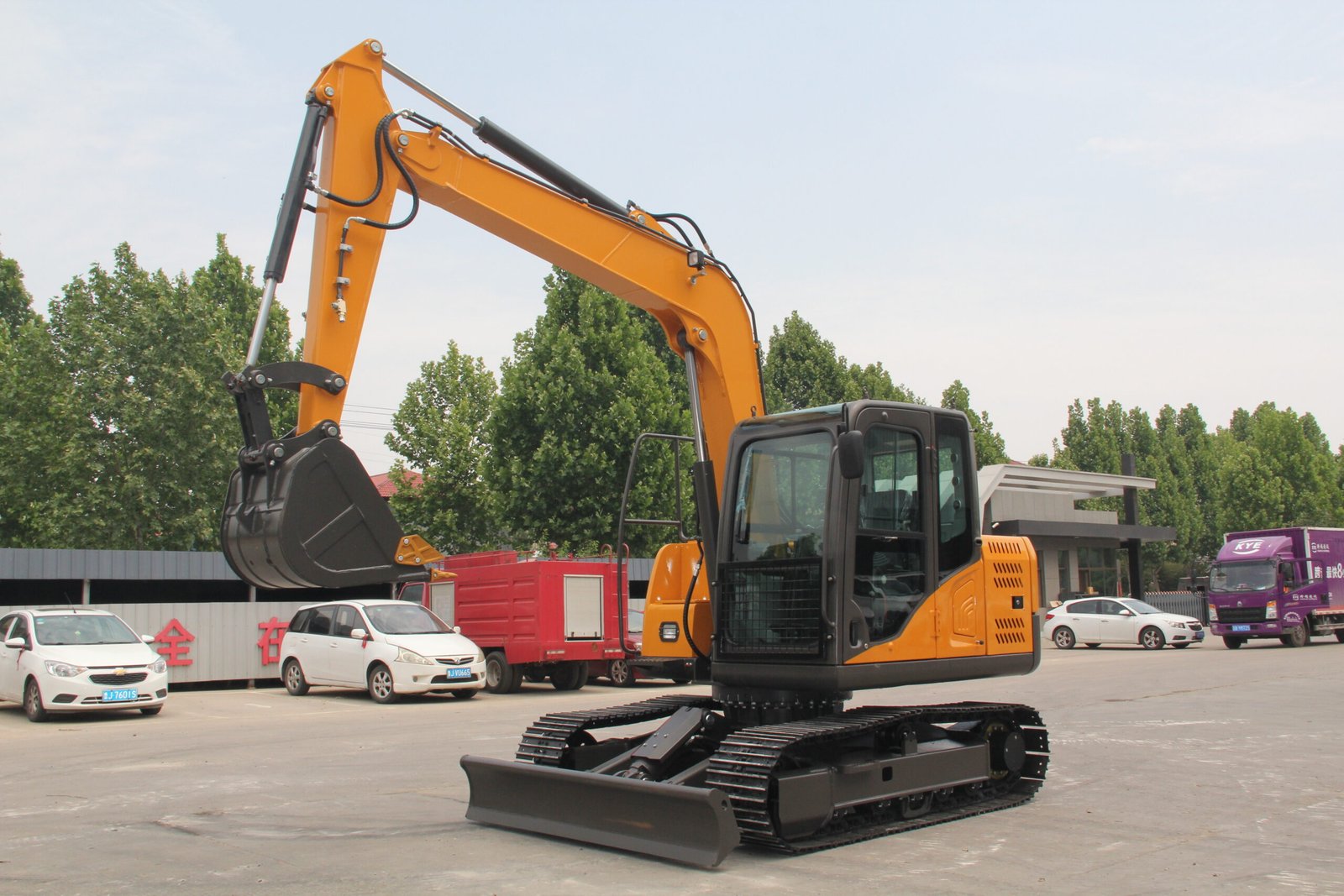

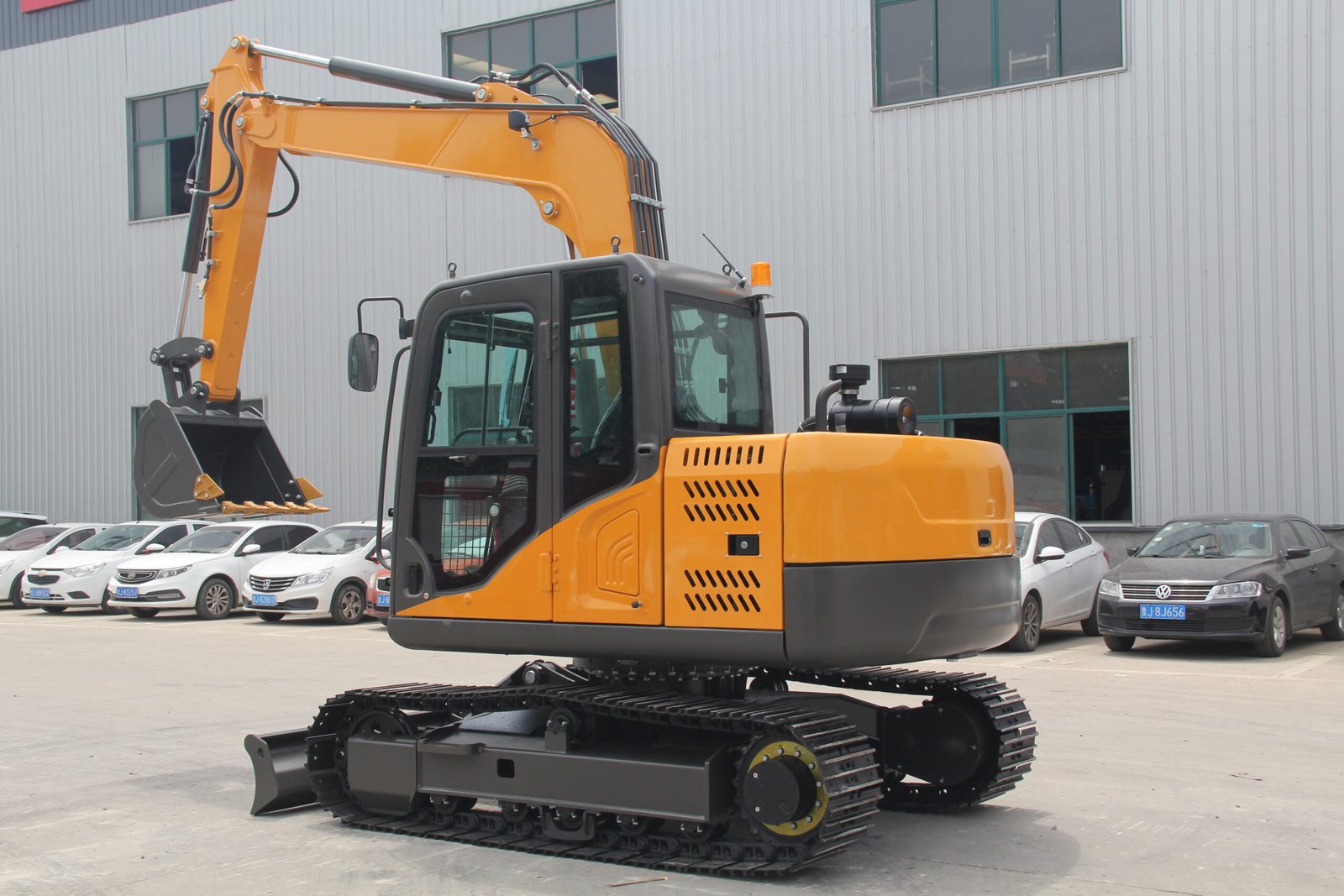

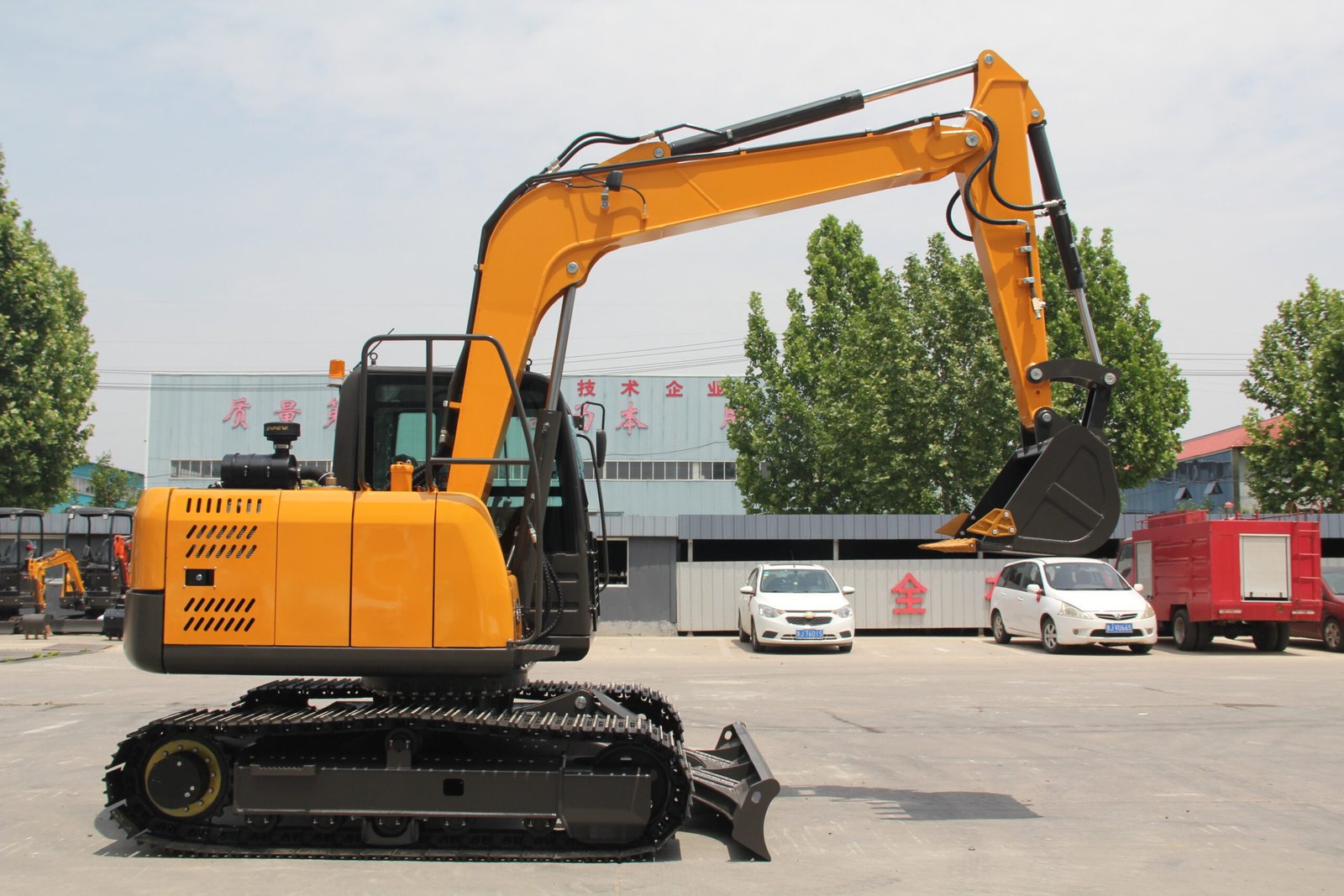

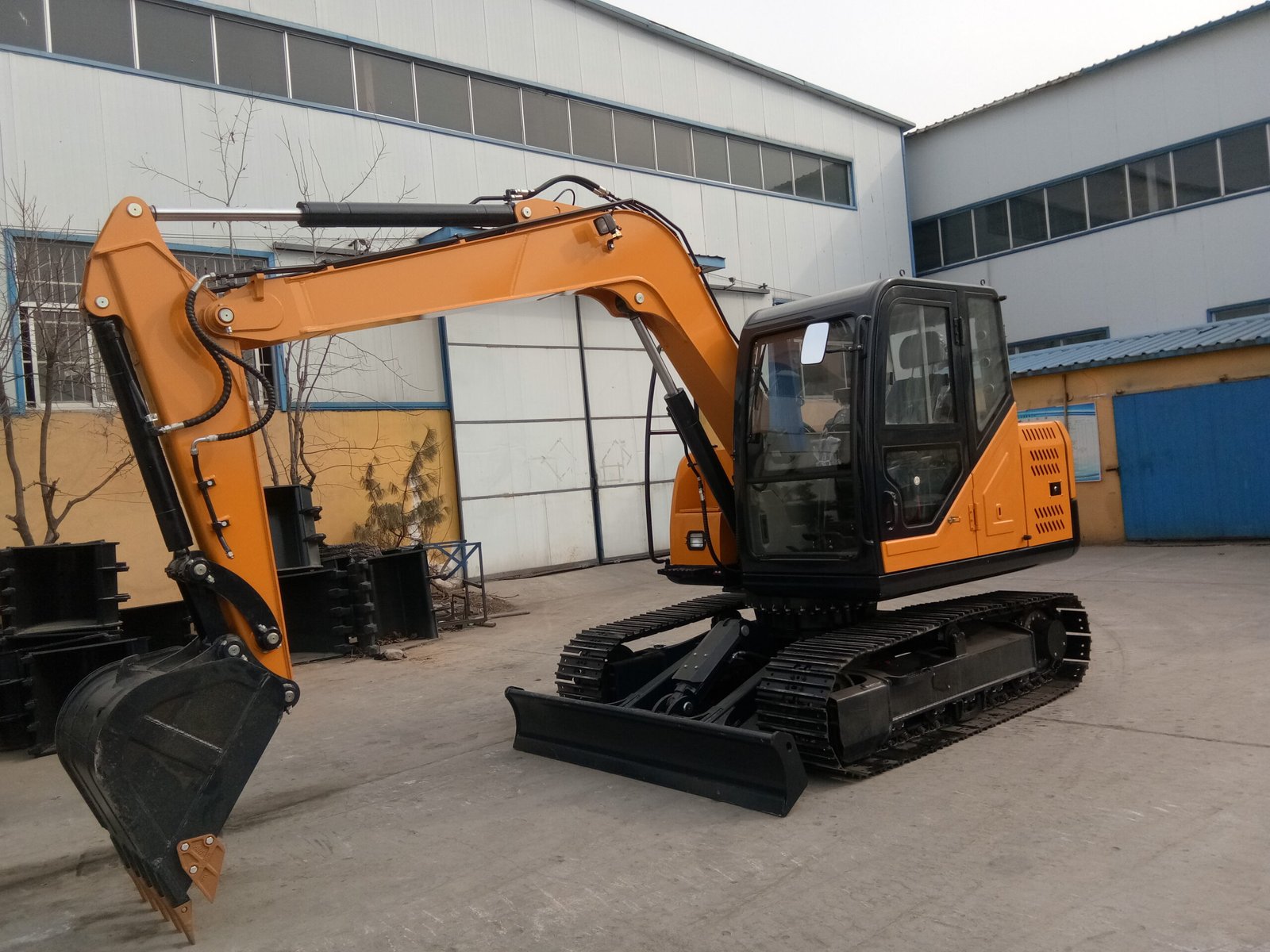

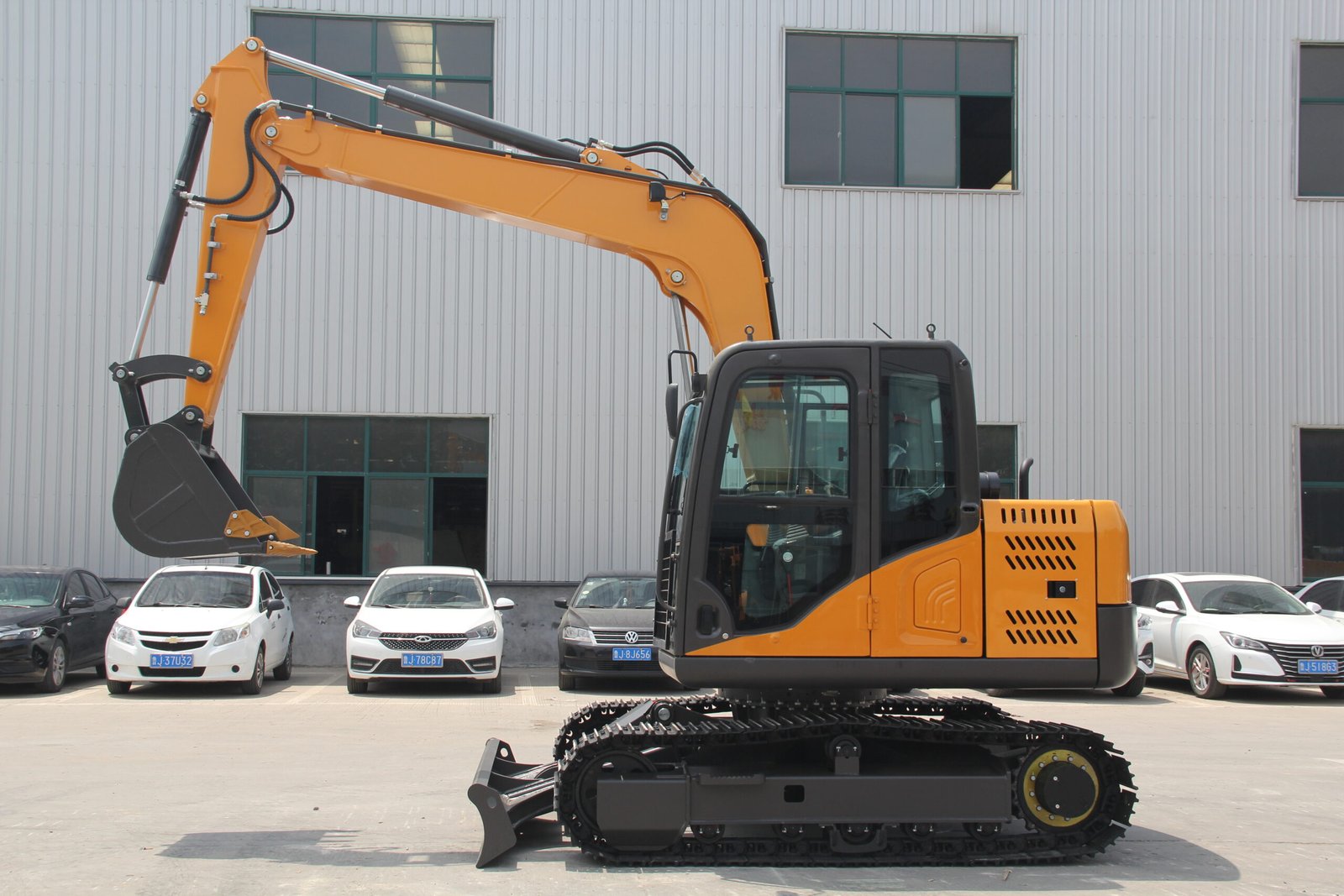

JH75F
Description
