| ENGINE | |
| Emission Standard | EPA4/EURO 5 |

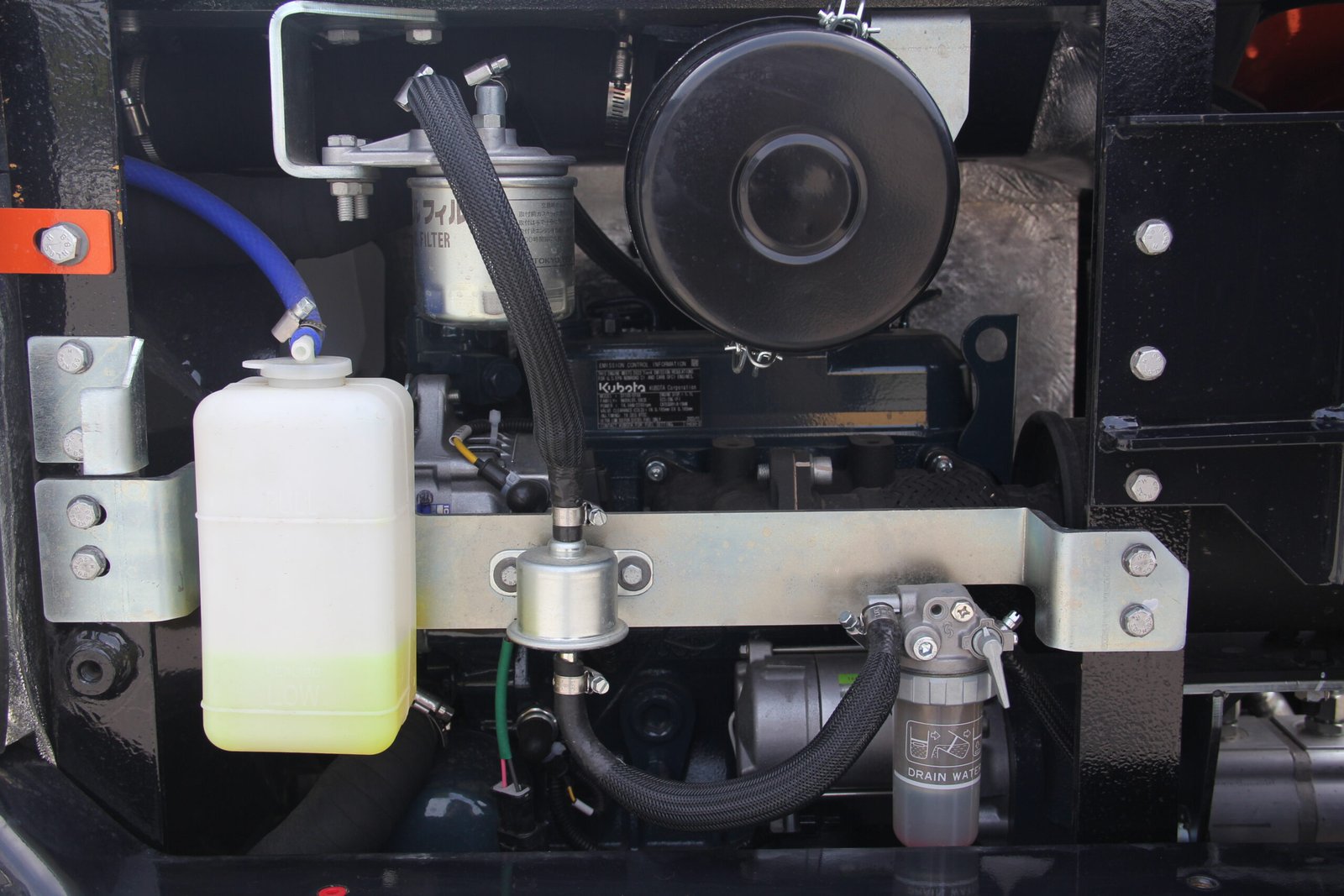

| Make /Mode | KUBOTA/D1105 |
| Power /Rotation speed | 14kw(19HP)@2200rpm |
| Type | |
| Number of cylinder | 3 |
| Max.torque | |
| Displacement | |
| TRACK SYSTEM | |
| Maximum Travel speed | |
| Maximum Travel speed(High/low) | |
| Width of (Steel)track shoe | 230mm |
| Number of track shoe per side | |
| Number of upper roller per side (Carrier roller) | |
| Number of bottom roller per side (Supporting roller) | |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.06m³ |
| Swing speed | 10~12 rpm |
| Maximum Grade ability | 35° |
| Maximum Bucket digging force | 14KN |
| Maximum Arm digging force | 10KN |
| Hydraulic system pressure | 16Mpa |
| Ground pressure | |
| Machine weight | 1900kg |
| Machine weight(with canopy) | |
| Machine weight(with closed cabin) | |
| Fuel tank capacity | |
| Hydraulic oil tank capacity | |
| Boom length | |
| Arm length | |
| Engine oil capacity | |
| Radiator capacity | |
| Final drive | |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3865mm*1050mm*2215mm |
| Height of cabin | |
| Track length on ground(Axle base) | 1230mm |
| Track gauge | 820mm |
| Minimum Ground clearance | 210mm |
| Swing radius at tail | 1125mm |
| Length of rubber track | |
| Swing radius at front | |
| Height of blade | |
| WORKING RANGE | |
| Maximum Digging height | 3365mm |
| Maximum Dumping height | 2385mm |
| Maximum Digging depth | 2050mm |
| Maximum Vertical digging depth | 1725mm |
| Maximum Digging radius | 3860mm |
| Minimum swing radius | 1720mm |
| Maximum Digging distance (on ground) | |
| Maximum Lifting height of blade | 230mm |
| Maximum Cutting depth of blade | 275mm |
| Boom swing angle(Left/Right) | 75°/45° |
| Max.height when min.swing radius |

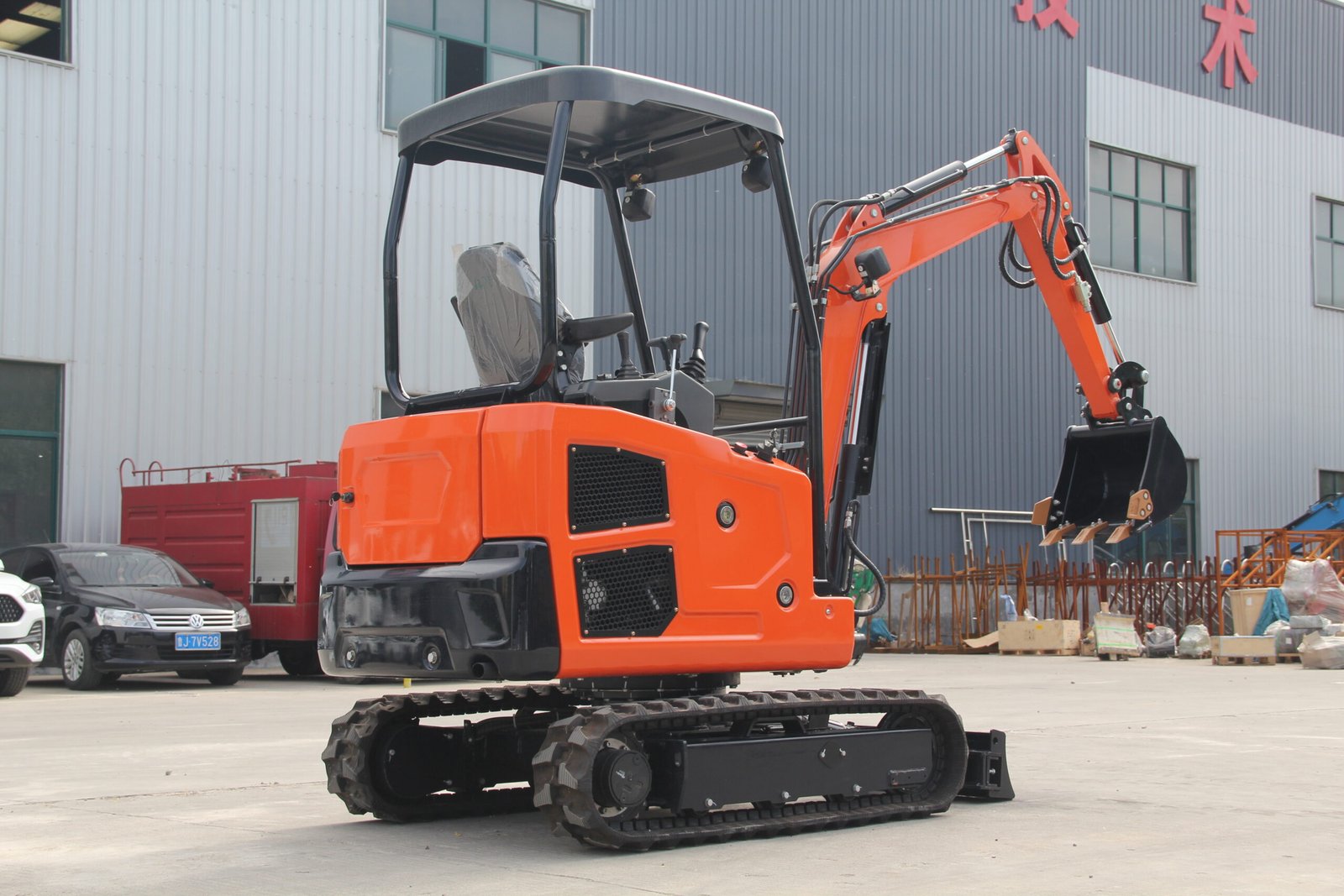

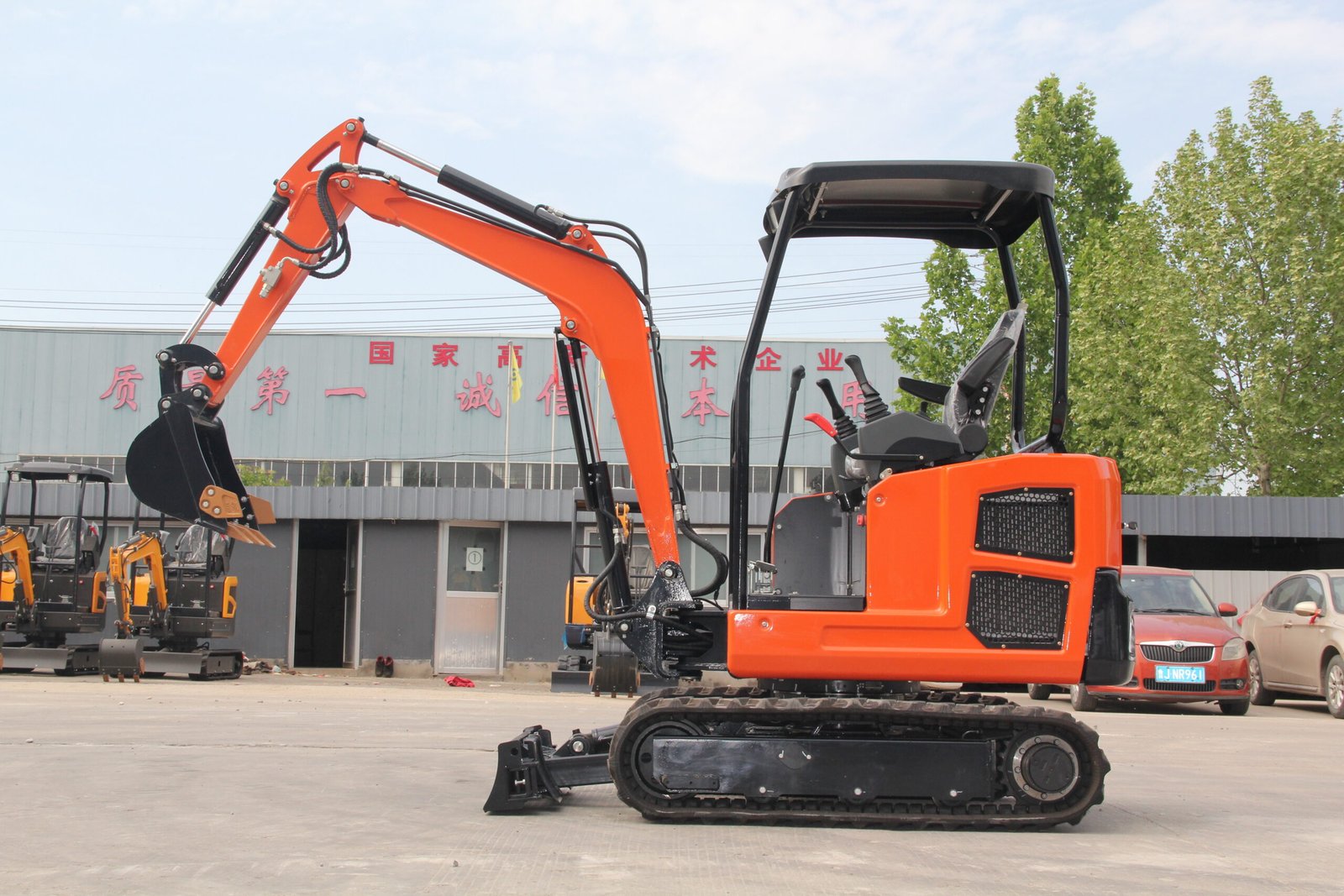

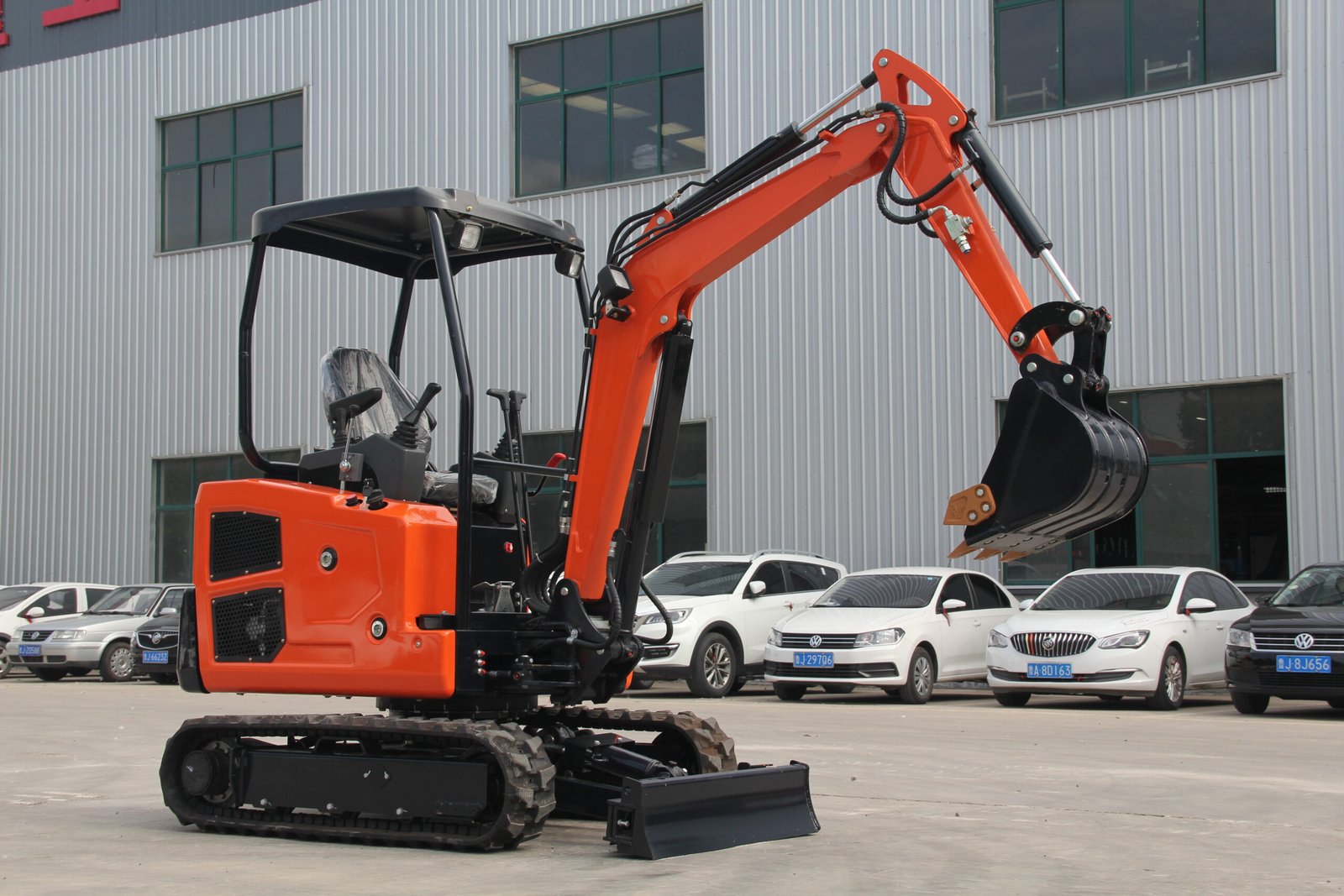

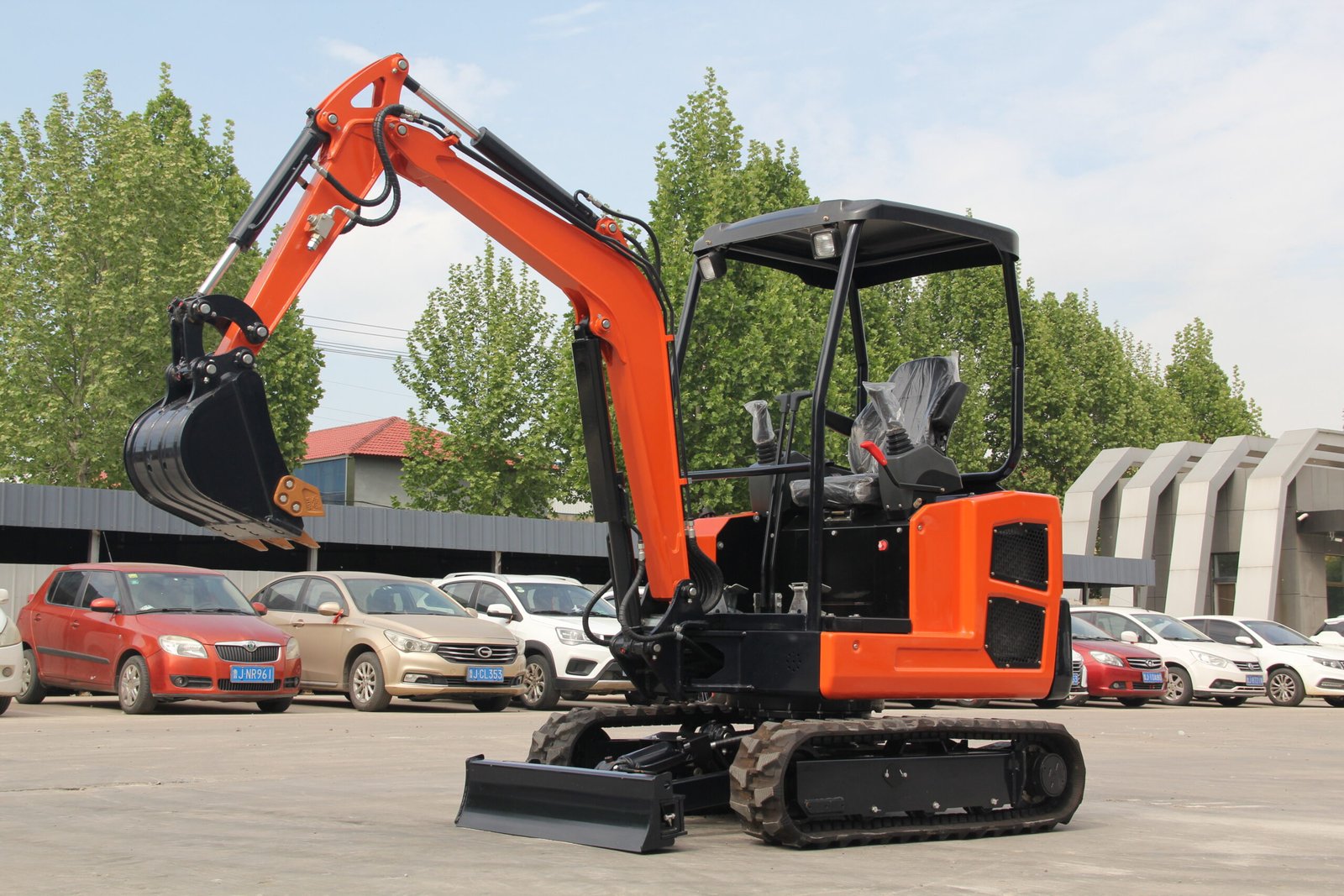

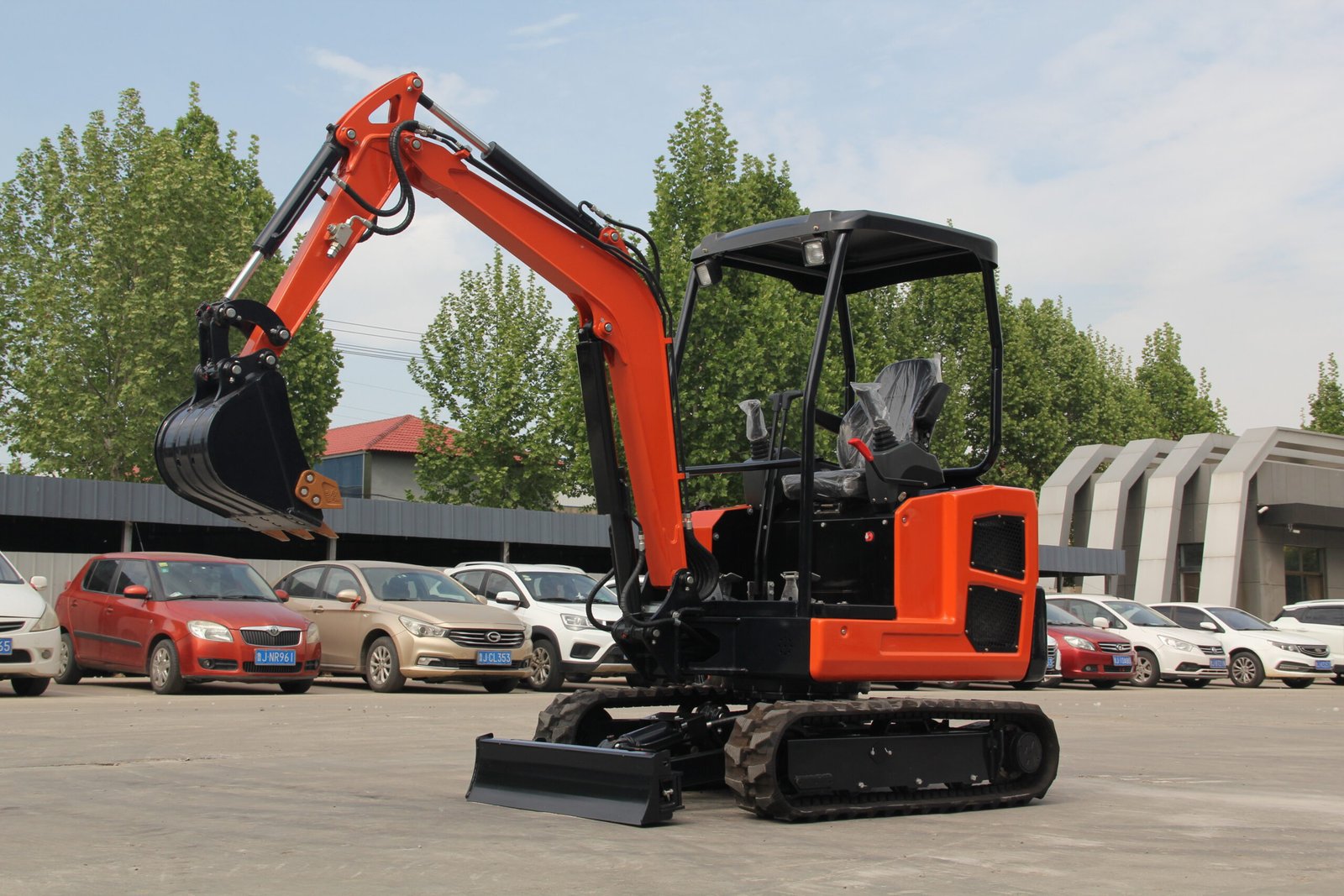

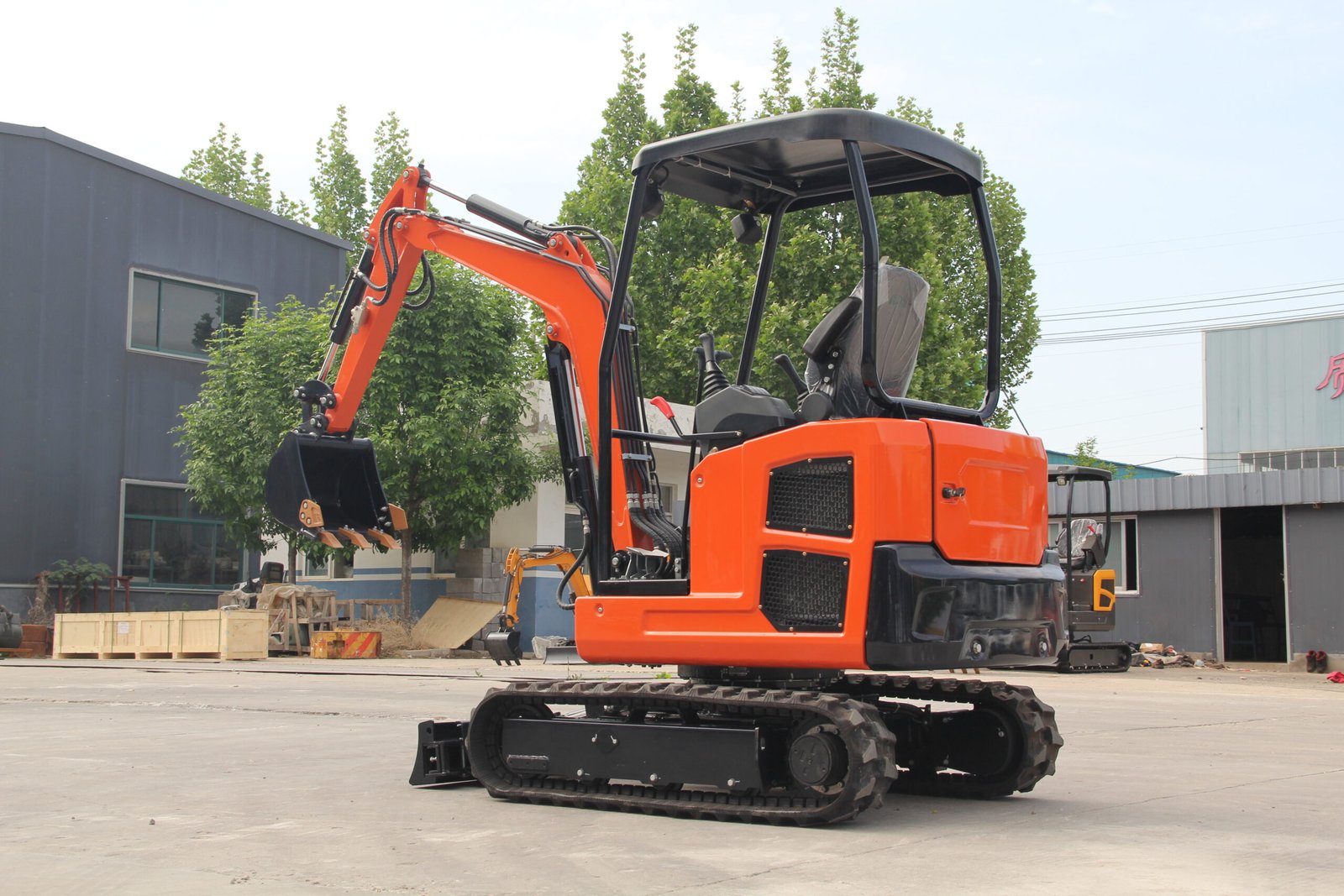

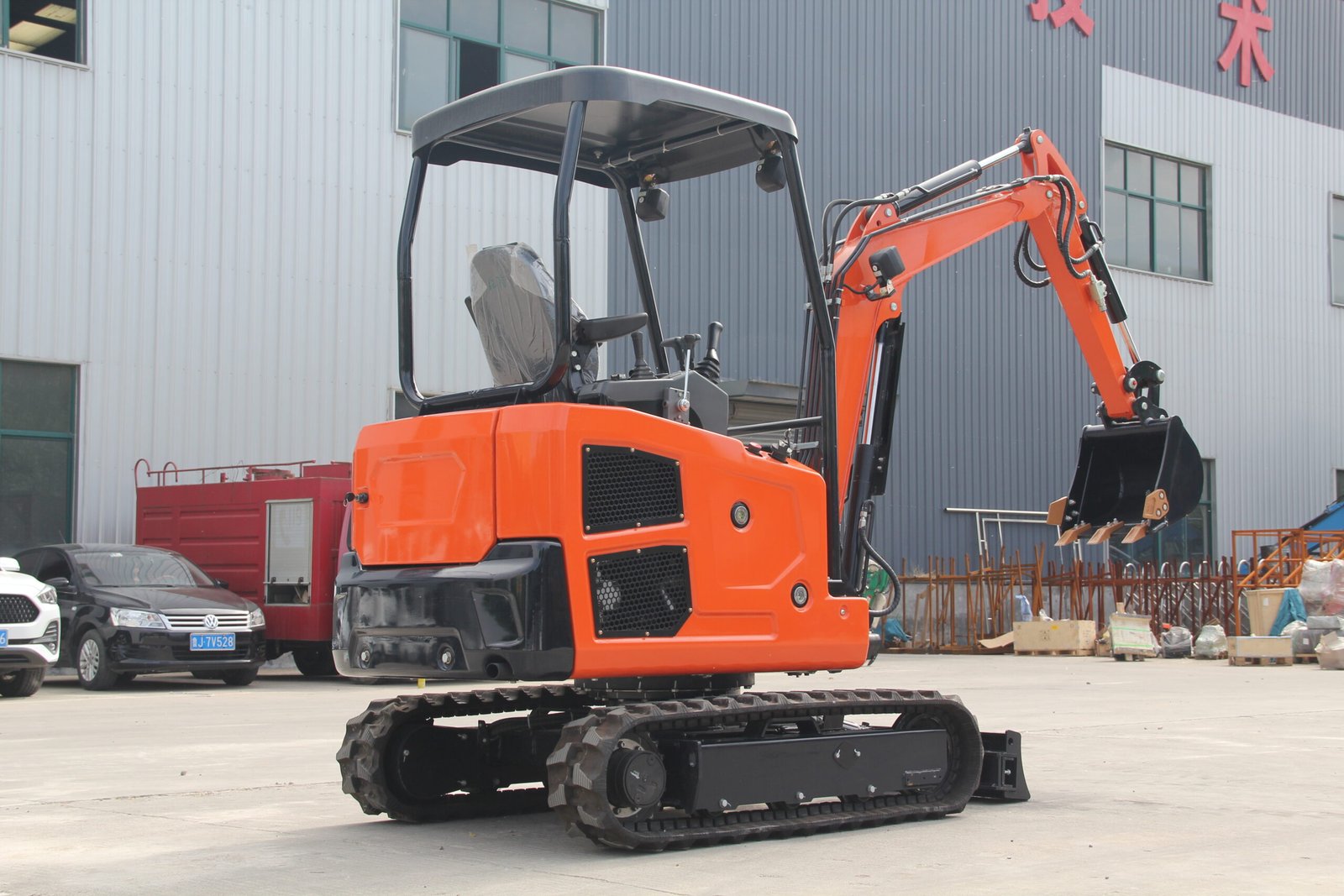

JH18
